Sensor module listings pack a lot of information into a small space, and it's easy to skim past the details that actually determine whether a module will work in your project. Two sensors that measure the same thing can differ in ways that only show up once you're already wiring them in — by then, an easy return is the best case, and a fried board is the worst. A few extra minutes reading the listing carefully avoids both.
Why Listings Can Be Misleading
Not because sellers are being dishonest — usually because the listing is written for someone who already knows what to look for, and important details get buried in a spec table or left out entirely if they're assumed to be "standard." The goal of this guide is to give you the checklist that experienced builders already run through automatically, so a listing that looks fine at a glance doesn't turn into a surprise once the module arrives.
Supply Voltage vs Logic Voltage
These are two different numbers, and mixing them up is one of the most common (and most damaging) mistakes. Supply voltage is what powers the sensor itself — often a range like 3.3V–5V. Logic voltage is the voltage level the sensor's data pins use to communicate — and it isn't always the same as the supply voltage. A module can happily run on 5V power while still expecting 3.3V logic signals on its data lines, and connecting it directly to a 5V-logic controller without any level shifting can damage the sensor, the controller, or both.
Always check both numbers separately, and confirm they're compatible with your controller's own logic level before wiring anything up.
Communication Interface
Check whether the module uses I2C, SPI, UART, or a simple analog or digital output. This single detail determines how many pins you'll need, whether it can share a bus with your other sensors, and how much software support you can expect to find. For a full breakdown of what each interface means in practice, see our guide to I2C, SPI and UART.
Pinout
A module's pinout tells you exactly what each physical pin does — which is power, which is ground, which carries data, and in what order they're arranged. Pinouts are not standardized across manufacturers, even for modules that otherwise look identical, so always confirm the pinout from the actual listing or datasheet rather than assuming it matches a similar module you've used before.
Measurement Range and Accuracy
A sensor's usable range and its accuracy are two separate specifications, and both matter. Range tells you the minimum and maximum values the sensor can measure at all; accuracy tells you how close a given reading is likely to be to the true value. A temperature sensor rated for -40°C to 85°C with ±2°C accuracy behaves very differently from one rated for the same range with ±0.5°C accuracy, even though both would appear to "work" for a basic room-temperature project. If your project depends on precise readings — not just a rough estimate — check the accuracy figure specifically, not just the range.
Onboard Regulators and Level Shifting
Many breakout boards include a small onboard voltage regulator and/or level-shifting circuitry to make a raw sensor chip easier to use safely — accepting a wider input voltage and handling the logic-level conversion for you. Others are bare breakouts with none of that, requiring you to manage voltage and logic levels yourself. Neither is inherently better, but it's important to know which one you're buying: a bare breakout is often cheaper and smaller, but expects more care during wiring; a regulated breakout costs a little more and takes up slightly more space, but is far more forgiving if your project's voltage isn't a perfect match.
Library and Software Support
A sensor with confirmed, actively maintained library support for your specific board or platform will save significant development time compared to one that requires writing a driver from a raw datasheet. Before buying, it's worth searching for the exact sensor model alongside your board or platform to confirm example code and libraries already exist and are reasonably up to date.
Physical Size and Connector Type

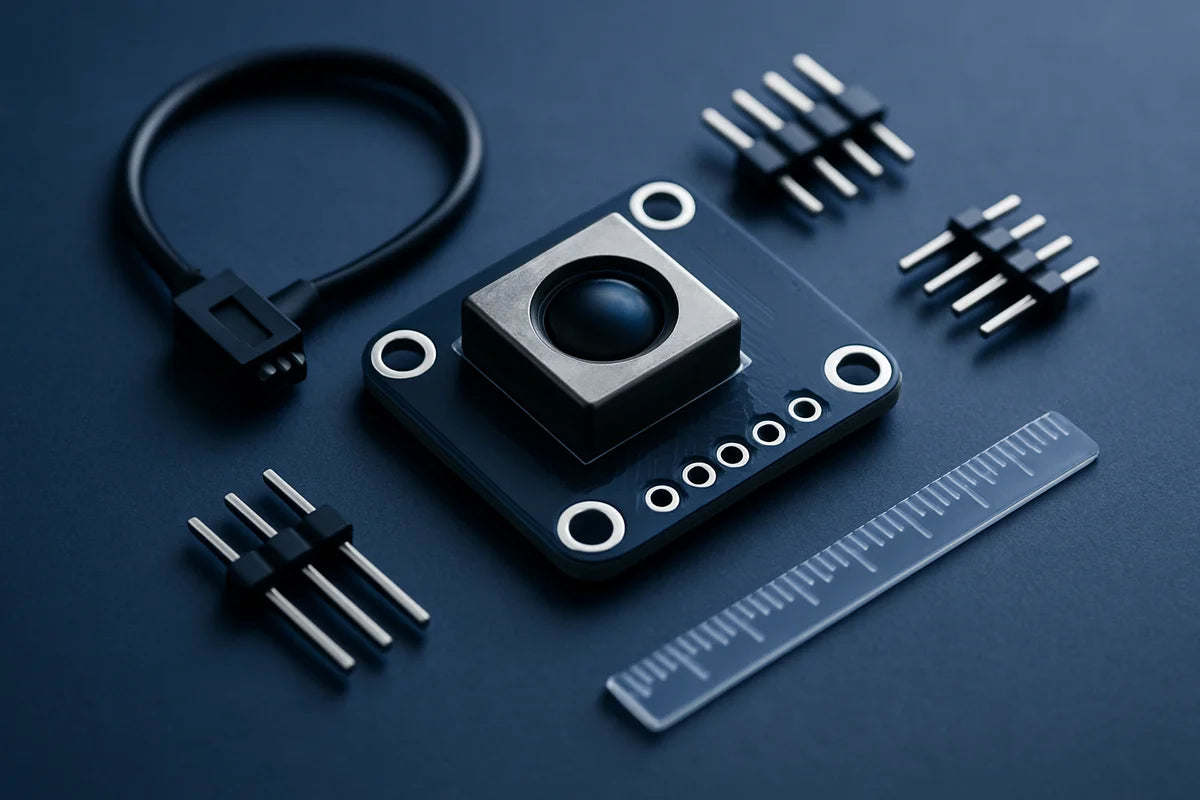

Board dimensions matter more than they might seem to at first, especially for projects going into an enclosure or a space-constrained build. Also check the connector type — some modules use simple through-hole pins meant for a breadboard or direct soldering, while others use a pre-terminated cable connector, which may or may not match the connectors already used elsewhere in your project.
Compatibility Assumptions
It's easy to assume a sensor will "just work" with your existing setup because it looks similar to one you've used before, but small differences in voltage, interface, or pinout can break that assumption entirely. Before buying, take a moment to actually compare the new module's specifications against the rest of your project's requirements, rather than relying on visual similarity to a module you already know.
A Quick Pre-Purchase Checklist
- Does the supply voltage match what I can provide?
- Does the logic voltage match my controller, or do I need level shifting?
- What communication interface does it use, and do I have the pins for it?
- Does the pinout match the listing or datasheet I'm looking at, not just a similar module?
- Is the accuracy — not just the range — good enough for what I'm measuring?
- Does it include onboard regulation, or is it a bare breakout?
- Is there confirmed library support for my board and platform?
- Will it physically fit, and does the connector match my project?
Running through this list before adding a sensor to your cart is exactly what "compatibility first" means in practice — catching a mismatch on the listing page, not after the module has already arrived. Once you know what to look for, browsing sensors with these specifics in mind makes it much easier to compare modules that only look the same at a glance.
